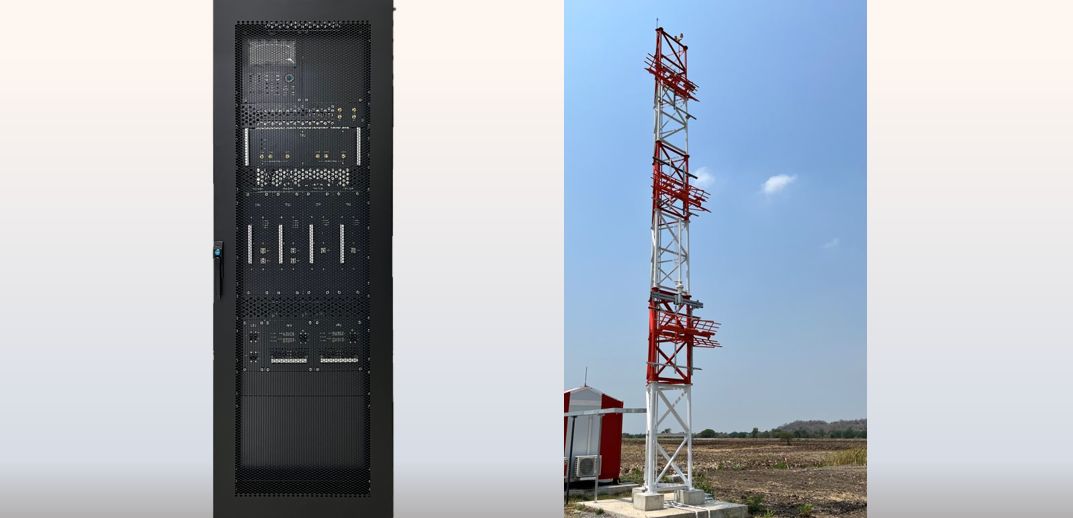

Hename designed the GP with the customers' requirements in mind, conducting interviews with numerous ILS maintenance experts. One of our primary goals in the system design was to significantly reduce both the complexity and the time required by field engineers for maintenance tasks. Additionally, our careful and thorough preparation in the factory ensures the production of fault-free equipment..
Recognizing the need for sustainable equipment that operates effectively in harsh environments, we incorporated comprehensive temperature compensation circuits into our systems. Whether at a highly populated airport or a less populated one, our GP is designed to meet all demands. Upgrading from CAT I to CAT II and CAT III is seamless; every unit we release from our factory is CAT III ready, ensuring support for long-term growth and success.
Thanks to meticulous attention to temperature compensation, the Mercury ILS can immediately stabilize all critical parameters upon the power-on of the transmitter. This feature is especially valuable for airports utilizing a cold standby configuration of the ILS.
System | Specification |
---|---|
Type | Dual Frequency (Fc ± 8 KHz) or Single Frequency |
Frequency Range | 328.6 MHz to 335.4 MHz 150KHz spacing |
Carrier Frequency Stability | ±0.0001%, 166Hz@332MHz |
Operation Temperature | -10˚C to +55˚C |
Relative Humidity | 0 ~ 90% |
Primary Power | 110 V to 230V 47 to 63Hz |
System and Standby Power | +24 V DC |
Battery Backup | 4 hours or longer |
Transmitter | Specification |
---|---|
CSB Output Power | Typically 5 Watt (+37 dBm) Adjustable 32dBm to 40dBm |
CLR Output Power | Typically 0.5 Watt (+27 dBm) Adjustable 24dBm to 34dBm |
CSB/SBO Power Stability | ±0.2dB |
Harmonics / Spurious | 1uW / 10 uW |
Total Harmonic Distortion | less than 1% |
CSB/SBO Phase Adjustment | ±180 degree |
Modulation | Frequency 90Hz±0.1%, 150Hz±0.1% Modulation Depth 80% (0%~90%) SDM Stability ±0.8% DDM Stability ±0.2% |
Monitor | Specification |
---|---|
Input RF | Integral, Near Field |
Input Level | - 10 ~ - 40 dBm |
Monitor Stability | RF Power Value ±0.3dB DDM ±0.1% SDM ±1% |
Alarm Limit | Programmable |
